4,000 Watt Gasoline Generator |
|
|

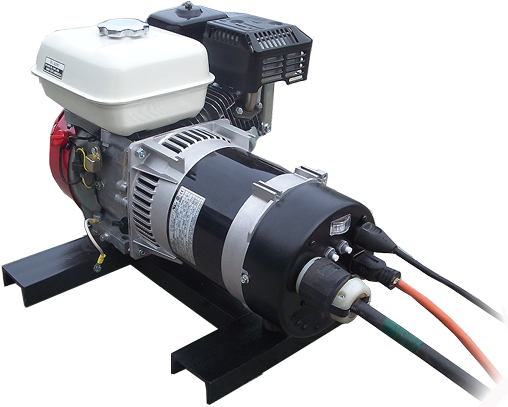

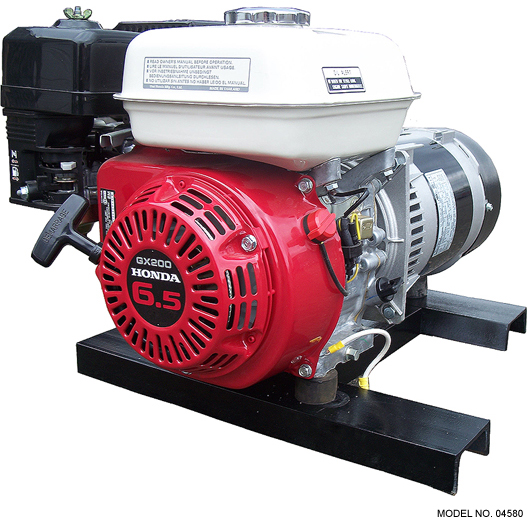

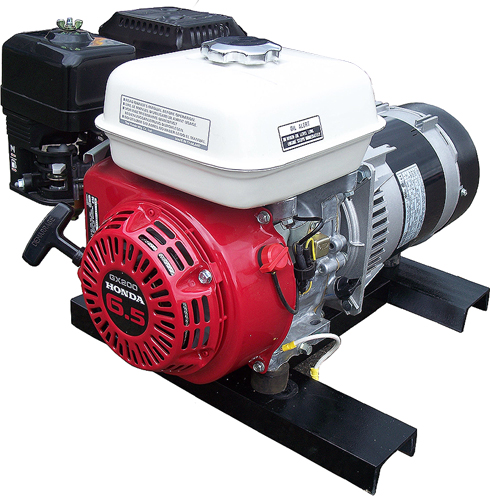

4,000 Watt Gasoline Generator - This unit is suitable for standby power or emergency use and has plenty of power to run your home, job site or business. The generator's simple, compact design allows for easy installation in a variety of applications requiring a small footprint and can be anchored to a concrete pad or operated free standing.
120/240 V outlet.
Full power output.

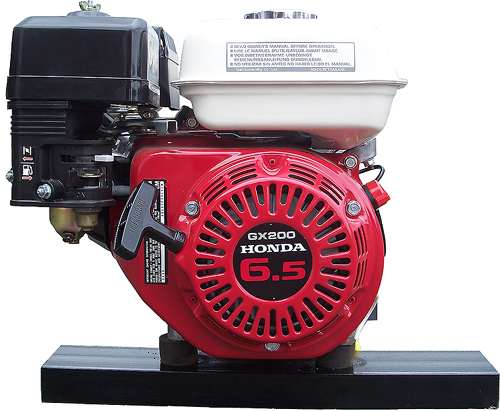

This unit features a Honda GX 200 OHV gasoline engine, brushless generator, residential grade muffler, oil pressure shutdown, dual element air cleaner, receptacle panel with 120 V and 240 V outlets, welded steel skid frame, vibration isolator mounts and 3 year warranty.
|
|
|
Generator
| Maximum Output |
4,000 watts |
| Continous Output |
3,250 watts |
| Load Amperage at 120 volts |
--- |
| Maximum Load |
33.3 Amps |
| Continous Load |
27 Amps |
| Load Amperage at 240 volts |
--- |
| Maximum Load |
16.7 Amps |
| Continous Load |
13.5 Amps |
| Sound Level @ 23 ft |
70 dB(A) |
|
|
|
Engine
| Model |
Honda GX 200 |
| Type |
4 Stroke, OHV |
| Displacement |
196 cc |
| Oil Capacity |
0.63 qts |
| Lubrication System |
Splash |
| Oil Alert |
Standard |
| Cylinder Block |
Aluminum w/ Cast Iron Sleeve |
| Bore & Stroke |
2.68" x 2.12" |
| Exhaust Outlet |
1" OD Muffler |
| Fuel |
Gasoline |
| Starting System |
Recoil |
|
|
|

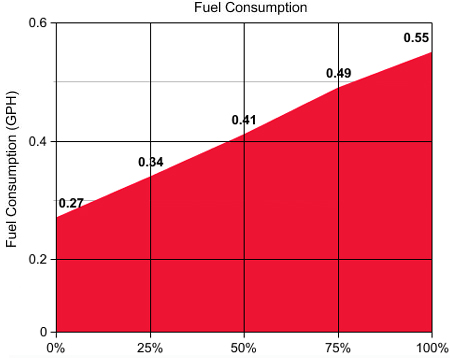

Consumption
| Consumption at 1/2 load |
0.41 gallons/hour |
| Consumption at 3/4 load |
0.49 gallons/hour |
| Consumption at full load |
0.55 gallons/hour |
|
|
|

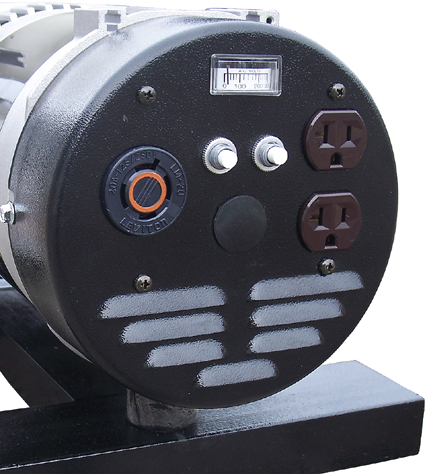

Power Output Panel
| 120/240 VAC NEMA#L14-30R |
1-30 Amp |
| 120 V Duplex NEMA#5-20R |
2-20 Amp |
| Voltmeter |
Standard |
|
Installation Data
| Minimum Power Lead Size |
0-50 Feet: 10 AWG
51-100 Feet: 8 AWG |
| No. Power Lead Conductors |
4 |
| Exhaust Outlet |
1" OD Muffler Outlet |
| Engine Oil Type |
10W-30 |
Exhaust Location & Direction
(Facing Engine) |
Left-side |
Service Points
(Facing Engine) |
Oil Fill Cap: Right-Side
Fuel Inlet: Left-Side
Power Output: Back-Side
Control Panel: Front-Side
Air Filter: Front-Side |
Maintenance Schedule
| Replace Air Filter |
300 Hours / 12 months |
| Replace Spark Plug |
300 Hours / 12 months |
| Exercise Generator Under Load |
Once each month |
| Change Oil |
200 hours / 6 months |
Warranty
| Engine Warranty |
3 Years |
| Generator Warranty |
2 Years |
| 100% Coverage for Parts & Labor |
Standard |
|
|
Dimensions
| Length |
22" |
| Width |
18" |
| Height |
14" |
| Dry weight |
85 lbs |
|
|
