Current lead times are 1 week.


Central Maine Diesel Inc. (“CMD”) is not affiliated with, sponsored by or otherwise associated with Kohler Co. (“Kohler”). We purchase genuine Kohler® engines and assemble the generator. Kohler® is a registered trademark of Kohler Co.


Our Reduced Price:$
View
View
View
View

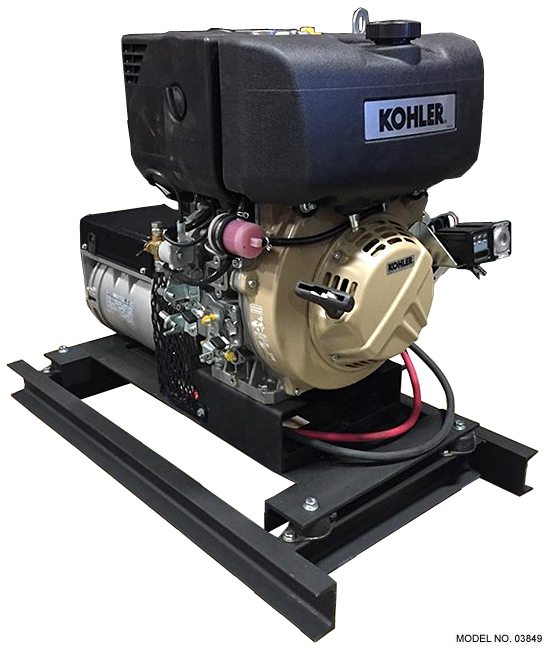

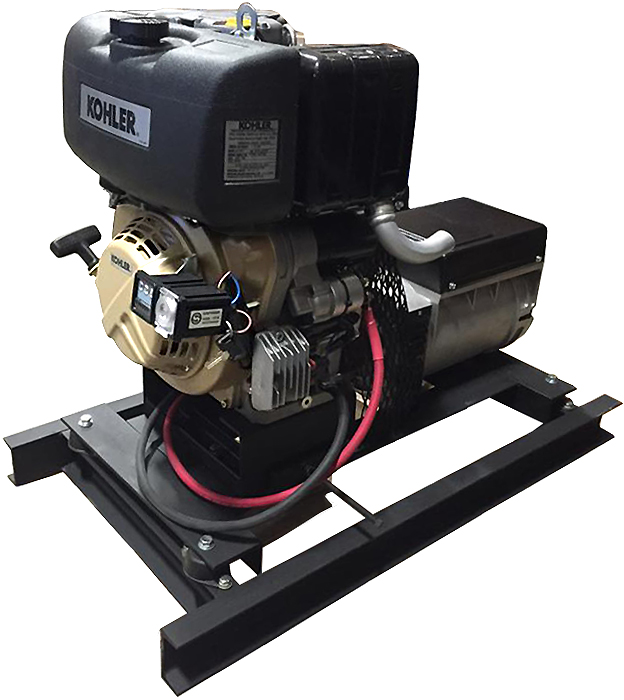

  Slow-Turning 5 kW Diesel Generator - Grab a 19 gallon fuel tank you'll have electricity for 79 hours. That's an entire weekend plus on only 19 gallons of diesel fuel! This slow-turning diesel generator is THE MOST FUEL EFFICIENT DIESEL GENERATOR WE HAVE EVER ASSEMBLED

This is a belt-drive unit that operates at about 2800 RPM. Click here to view our water-cooled 1800 RPM diesel generators.
The slow speed design enhances engine life and significantly decreases sound levels and fuel consumption. Add the two-wire auto feature and this unit would be ideal for a solar power application. This unit includes a slow-turning 10 HP Kohler Diesel engine, brushless generator end suitable for powering sensitive electronics, residential muffler, replaceable foam air filter elemant, steel skid base w/ vibration isolators (for smooth operation), compact design (LxWxH:29-3/4"x20"x26-1/4"), 2 year engine/generator warranty and is electric start. CALL FOR SHIPPING QUOTE.

55 GALLON DRUM
FUEL TANK KIT




Options   Price
55 Gallon Fuel Drum Kit + $195
Two-Wire Auto Start Control + $799
18 Gallon External Fuel Tank + $575






Generator
Power Single-Phase ---
Is this unit suitable for powering sensitive electronic equipment like a laptop computer? Yes
Maximum Output 5,000 watts
Continous Output 4,500 watts
Load Amperage at 120 volts ---
Maximum Load 41 Amps
Continous Load 37.5 Amps
Load Amperage at 240 volts ---
Maximum Load 21 Amps
Continous Load 18.75 Amps



.
Engine -
Make Kohler KD440
Type 4 Stroke
Oil Capacity 1.6 qts
Cylinder Block Aluminum w/ Cast Iron Sleeves
Bore & Stroke 3.38" x 2.95"
Cylinders 1
Exhaust Outlet 1" OD Mufler
Fuel No. 2 Diesel
Starting System Electric




.

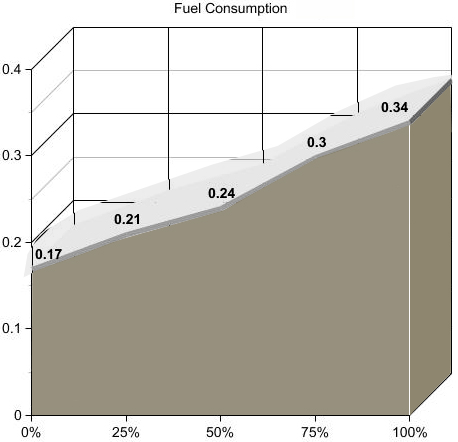

Consumption
Consumption at 1/2 load 0.24 gallons/hour
Consumption at 3/4 load 0.30 gallons/hour
Consumption at full load 0.34 gallons/hour





Generator
No. Power Lead Conductors 4
Minimum Power Lead Size 0-50 Feet: 12 AWG
51-100 Feet: No. 10 AWG
101-150 Feet: No. 8 AWG
Exhaust Outlet 1-1/2" OD Muffler Outlet
Service-Side Direction
(Facing Engine)
Left-Side
Exhaust Direction
(Facing Service Side)
Back-Side
Fuel Tank Location
(Facing Service Side)
Front-Side
Power Output Direction
(Facing Service Side)
Left-Side
Battery Type 12 VDC - 350 CCA
Engine Oil Type 10W-30




Warranty
Engine Warranty 2 Years
Generator Warranty 2 Years
100% Coverage for Parts & Labor Standard




Dimesions
Length 29-3/4"
Width 20"
Height 26-1/4"
Dry weight 165 lbs
